Wet Scrubber vs Bag Filter: Which APCD Is Better for Your Industry?

Promotional banner about choosing between wet scrubber or bag filter for an industrial plant, with factory equipment and a Sleamax logo, and the text: “WET SCRUBBER OR BAG FILTER. Which one is right for your plant?”

Summary

  • Wet scrubbers and bag filters are two widely used Air Pollution Control Devices (APCDs), but they work differently and are suited to different industrial applications.
  • Wet scrubbers use water or another scrubbing liquid to capture particulate matter and, depending on their design, remove certain gaseous pollutants. However, they require water circulation, liquid treatment, and sludge management
  • Bag filters use dry fabric filtration to capture particulate matter, including fine dust and fly ash. They are often preferred for applications requiring high-efficiency dry dust collection, such as biomass-fired boilers. Their performance depends on filter media, gas temperature, dust characteristics, air-to-cloth ratio, and system design.

Industries today face increasing pressure to control emissions efficiently while also managing operating costs and compliance requirements. Among the most commonly used Air Pollution Control Devices (APCDs), wet scrubbers and bag filter are among the preferred solutions for industrial emission control.

But many industries still struggle with one question:

Which system is better for my application?

The answer depends on several factors, such as:

  • Type of pollutant
  • Dust characteristics
  • Gas temperature
  • Water availability
  • Operating cost expectations

Understanding how both systems work helps industries choose the right solution rather than invest in the wrong technology.

Steamax pulse jet bag filter

What Is a Wet Scrubber?

A wet scrubber removes pollutants by bringing polluted gas into contact with water or another scrubbing liquid.

As the gas passes through the system:

  • Dust particles become wet and heavier
  • Pollutants get trapped in liquid droplets
  • Contaminants are separated from the gas stream

Wet scrubbers are commonly used in industries where both particulate matter and gaseous pollutants need to be controlled.

What Is a Bag Filter?

A bag filter, also called a fabric filter, works by passing flue gas through specially designed filter bags. The bags capture dust particles while allowing clean gas to pass through.

Over time, dust accumulates on the bags’ surfaces and is periodically removed using pulse-cleaning systems.

Bag filters are widely used for dry dust collection applications requiring very high particulate removal efficiency.

Wet Scrubber vs Bag Filter: Understanding the Key Differences

1. Working Principle

Wet Scrubber

Wet scrubbers use liquid-based cleaning.

The polluted gas comes into contact with water sprays, venturi sections, or scrubbing chambers where contaminants are absorbed or captured.

Best suited for:

  • Sticky dust
  • Acidic gases
  • Moist or corrosive emissions

Bag Filter

Bag filters use dry filtration technology.

Dust-laden gas passes through fabric bags that trap particulate matter on the surface.

Best suited for:

  • Dry particulate matter
  • Fine dust collection
  • High PM removal applications

2. Particulate Matter (PM) Removal Efficiency

Wet Scrubber Efficiency

Wet scrubbers provide moderate to high particulate removal efficiency depending on design.

Typical efficiency:

  • Around 85–98% for particulate removal

They perform well for larger particles and mixed pollutants but may struggle with extremely fine dry particulate matter.

Bag Filter Efficiency

Bag filters are known for extremely high PM removal efficiency.

Typical efficiency:

  • Often 99% or higher

They are highly effective in controlling:

  • Fine dust
  • Fly ash
  • Biomass ash
  • Industrial particulate emissions

For strict PM emission norms, bag filters are usually preferred.

3. Water Usage

Wet Scrubber

Water is essential for scrubber operation.

This means industries must consider:

  • Continuous water consumption
  • Effluent treatment requirements
  • Sludge handling

In regions with water scarcity, this can become a major operational concern.

Bag Filter

Bag filters operate as dry systems and require virtually no water during normal operation.

It makes them more suitable for:

  • Water-sensitive industries
  • Dry process applications
  • Areas with limited water availability

4. Temperature Limitation

Wet Scrubber

Wet scrubbers can handle relatively high gas temperatures, but excessive temperature may lead to:

  • Rapid evaporation
  • Corrosion issues
  • Reduced efficiency

In many cases, gas cooling may still be required.

Bag Filter

Bag filters have clear temperature limitations because filter bags can get damaged at very high temperatures.

Typical operating temperature depends on bag material:

  • Standard bags: lower temperature range
  • Special high-temperature bags: higher resistance

If gas temperature exceeds safe limits, spark arrestors or cooling arrangements may be necessary.

5. Operating Cost

Wet Scrubber Operating Cost

Wet scrubbers usually involve:

  • Higher water usage
  • Pump operation costs
  • Sludge disposal expenses
  • Corrosion-related maintenance

Operating costs can increase significantly over time if water treatment is involved.

Bag Filter Operating Cost

Bag filters mainly involve:

  • Fan power consumption
  • Compressed air usage
  • Periodic bag replacement

For dry dust applications, bag filters are often more energy-efficient and easier to maintain.

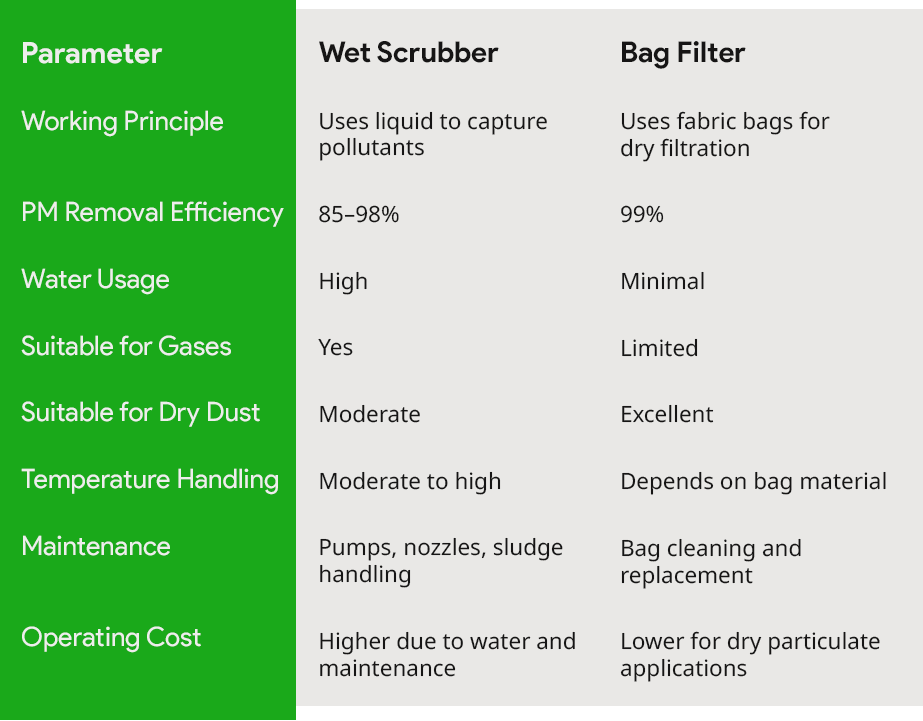

Wet Scrubber vs Bag Filter

ParameterWet ScrubberBag Filter
Working PrincipleUses water or scrubbing liquid to capture pollutantsUses fabric filter bags to capture dust particles
Primary ApplicationParticulate matter and certain gaseous pollutantsDry particulate matter and fine dust
PM Removal EfficiencyDepends on scrubber type and designOften 99% or higher with proper design and operation
Fine Dust CollectionDepends on particle size and scrubber energy inputHighly effective for fine particulate collection
Water ConsumptionRequires water or scrubbing liquidNo process water required during normal operation
Waste GenerationProduces wastewater or sludgeProduces dry collected dust or ash
Temperature HandlingCan handle hot gases with suitable design and coolingLimited by the temperature rating of filter media
MaintenancePumps, nozzles, piping, and liquid circulation systemsFilter bags, pulse cleaning, compressed air, and ash discharge
Operating CostsWater, pumping, treatment, and sludge disposalFan power, compressed air, and periodic bag replacement
Biomass Boiler SuitabilitySuitable for selected gas and particulate treatment applicationsCommonly used for fly ash and fine particulate control
Key Design FactorsLiquid-to-gas ratio, pressure drop, water chemistry, and wastewater handlingAir-to-cloth ratio, gas temperature, dust loading, and pressure drop
Main AdvantageCan remove certain gaseous pollutants as well as particulate matterEfficient dry particulate collection without wastewater generation
Main LimitationWater consumption and wastewater managementTemperature limitations and filter bag maintenance

Which System Is Better for Biomass Boilers?

For biomass-fired boilers, the choice depends on fuel type and emission characteristics.

Bag Filters Are Commonly Preferred For:

  • Fine biomass ash
  • Strict PM emission norms
  • Dry particulate removal
  • High-efficiency dust collection

Wet Scrubbers May Be Used When:

  • Gas cooling is required
  • Sticky pollutants are present
  • Mixed gaseous contaminants need treatment

In many industrial systems, the final decision depends on:

  • Fuel chemistry
  • Ash characteristics
  • Regulatory requirements
  • Water availability

The Real Question Industries Should Ask

Instead of asking:

“Which system is better?”

Industries should ask:

“Which system is better for my process conditions?”

Because the wrong APCD selection can lead to:

  • High operating costs
  • Poor emission control
  • Frequent maintenance
  • Compliance issues

Frequently Asked Questions (FAQs)

A wet scrubber uses water or another liquid to capture pollutants from gas streams. A bag filter uses fabric filter bags to collect particulate matter through dry filtration. Wet scrubbers can also treat certain gaseous pollutants, depending on their design, while bag filters primarily control dust.

Bag filters are generally preferred for high-efficiency dry particulate collection, particularly fine dust and fly ash. Wet scrubber performance varies by design, with high-energy systems such as venturi scrubbers capable of capturing fine particles.

Yes. Bag filters are widely used in biomass-fired boiler applications to capture fly ash and fine particulate matter.

  • Type and concentration of pollutants

  • Dust particle size and characteristics

  • Flue-gas temperature and flow

  • Water availability

  • Applicable emission limits

  • Energy consumption

  • Maintenance requirements

  • Wastewater or dust disposal

  • Total life-cycle cost

Final Thoughts

Both wet scrubbers and bag filters are effective pollution control systems when applied correctly.
1. Wet scrubbers are suitable for handling gases, sticky particles, and moisture-heavy applications.
2. Bag filters are ideal for high-efficiency dry particulate removal, especially in biomass and boiler systems.

The right selection depends on understanding your:
1. FuelFlue gas characteristics
2. Compliance targets
3. Long-term operating strategy
To explore practical optimisation solutions, visit: www.steamaxindia.com
